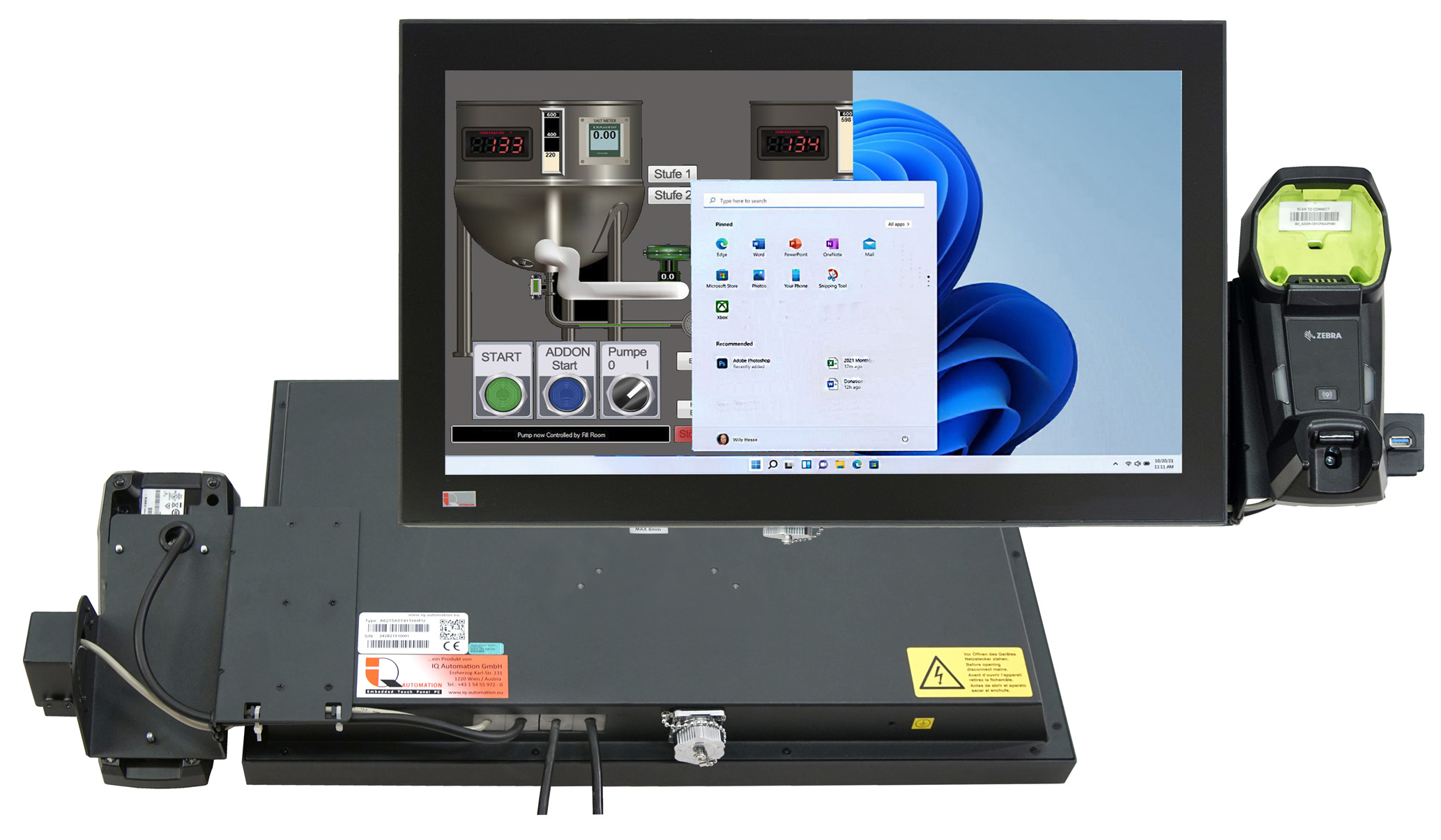

Edelstahl Multitouchscreen Rundum IP65 - Lüfterlos
|
Touchscreen Bediengerät zur Montage am Tragarm |
Rundum geschlossenes Gehäuse mit Core 2 Technologie 2x WLAN und IP65 verschlossenen USB Anschluß |
21.5" Panel PC mit Erweiterungssteckplätzen und rundum IP65 |
||
---|---|---|---|---|---|
Bestellbezeichnung: | A6215WHT60A17PU | AF215SBT00A17HU | A6215SBT60KK0PU | A9215SBTS0G20HU | |
Leuchtdichte cd/m² |
350 | 350 | 350 | 350 | |
Kontrast | 700:1 | 700:1 | 700:1 | 700:1 | |
Auflösung (Bildpunkte) | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
Farben | 16,7 Millionen | 16.7 Million | 16.7 Million | 16.7 Million | |
Details einblenden | |||||
Backlight Life Time |
LED 50.000h | LED 50.000h | LED 50.000h | LED 50.000h | |
Blickwinkel H/V | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | |
CPU | Intel® CELERON™ J1900 1.6GHz |
Intel® CELERON™ J1900 1.6GHz |
Intel® ATOM™ D2550 2x1.86GHz |
Intel® Core™ i7-6600U 2.6 ~ 3.4GHz |
|
Chip Set | Intel® HD Graphic | Intel® HD Graphic | Intel® NM10 Express chipset |
Intel® HD Graphic | |
Grafik | Intel® Graphics Media Accelerator 3650 |
||||
Audio | HD Codec 2W Verstärker | HD Codec 2W Verstärker | RT ALC662-VC HD Codec 2W Verstärker | RT ALC662-VC HD Codec 2W Verstärker | |
Speicher | DDR3L SO-DIMM 8GB | DDR3L SO-DIMM 8GB | DDR3 SO-DIMM 2GB max. 4GB | DDR3 SO-DIMM 2GB max. 8GB | |
SSD/HDD | SSD 64GB | SSD 64GB | SSD 64GB | SSD 64GB oder 250GB HDD | |
Erweiterung | 1x miniPCIe Sockel | 1x miniPCIe Sockel | 2x miniPCIe Sockel | 2x miniPCIe Sockel | |
Ethernet | 1x GbE RTL8111C 1x Intel I210-AT WOL/RPL/PXE |
1x GbE RTL8111C 1x Intel I210-AT WOL/RPL/PXE |
2x GbE RTL8111C WOL/RPL/PXE | 2x GbE RTL8111C WOL/RPL/PXE | |
USB | 5x USB 2.0 1x USB 3.0 |
5x USB 2.0 1x USB 3.0 |
8x USB 2.0 | 6x USB 3.0 + 6x USB 2.0 | |
COM Seriell | 6x (1x RS232/422/485) | 6x (1x RS232/422/485) | 2x (1x RS232/422/485) | 2x (1x RS232/422/485) | |
Videoausgang | 1x VGA 1x HDMI | 1x VGA 1x HDMI | 1x VGA 1x HDMI | 1x VGA 1x HDMI 1x DP | |
Sicherheit | Watchdog 1~255 Schritten |
Watchdog 1~255 Schritten |
Watchdog 1~255 Schritten |
Watchdog 1~255 Schritten |
|
Stromversorgung | 12VDC / 50W externes Netzteil optional 10VDC ~ 32VDC |
12VDC / 50W externes Netzteil optional 10VDC ~ 32VDC |
12VDC / 40W externes Netzteil optional 10VDC ~ 32VDC |
12VDC / 50W externes Netzteil optional 10VDC ~ 32VDC |
|
Temperaturbereich | 0° ~ 45° - Luftfeuchtigkeit bei 40°C relativ 90% nicht kondensierend optional erweitert |
0° ~ 50° optional erweitert |
0° ~ 50° optional erweitert |
0° ~ 50° optional erweitert |
|
Schutzklasse | komplett IP65 | Front IP65 / IP20 | Front IP65 | Front IP65 | |
Schutzglas oder Touchscreen | PCAP Multitouch - entspiegelt | 5Draht resistiver Touch od. 3M Capacitive GlasTouch |
PCAP Glas -Multitouch - entspiegelt | PCT Glas -Multitouch | |
Mögliches Zubehör bei allen Geräten | 8Bit GPDIO
|
RFID - WLAN | Funktionstasten - USV - WLAN | Digital Ein- Ausgang | |
Besonderheit | geschlossenes Gehäuse | kompakter Panel PC zur Montage an einen Tragarm | Geschlossenes Gehäuse - bevorzugt wenn im Tragarm die Kabel geführt werden | Höchste CPU Leistung mit Kartenrahmen zur Erweiterung |
![]() |
![]() |
||||
Rundum geschlossenes Gehäuse mit Intel Celeron 4-Kern Technologie - IP65 Lüfterlos |
Rundum geschlossenes Gehäuse - IP65- mit spezieller Rückwand für HOCHFORMAT - Anwendungen - Lüfterlos |
||||
---|---|---|---|---|---|
Bestellbezeichnung: | A6215INT80A17P1 | A6215INTH4xx0PU | |||
Leuchtdichte cd/m² |
350 | 350 | |||
Kontrast | 700:1 | 700:1 | |||
Auflösung (Bildpunkte) | 1920 x 1080 | 1920 x 1080 | |||
Farben | 16.7 Million | 16.7 Million | |||
Details einblenden | |||||
Backlight Life Time |
LED 50.000h | LED 50.000h | |||
Blickwinkel H/V | 170° / 170° | 170° / 170° | |||
CPU | Intel® CELERON™ J1900 1.6GHz |
Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz) | |||
Chip Set | Intel® HD Graphic | IO CHIP EC ITE IT8528E | |||
Grafik | Intel® UHD Graphics 620 | ||||
Audio | HD Codec 2W Verstärker | Realtek ALC892, supports 5.1-CH 1x MIC 1x Line Out | |||
Speicher | DDR3L SO-DIMM 8GB | 2 x 260-Pin SO-DIMM Socket, Max. Up to 64 GB DDR4 2400 | |||
SSD/HDD | SSD 64GB | SSD 64GB - 1 x SATA III - 1 x M.2 (Key-B, 2242) | |||
Erweiterung | 1x miniPCIe Sockel | 1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0, SIM Slot) 1 x M.2 (Key-E, 2230, PCIe, USB2.0, CNVi) |
|||
Ethernet | 1x GbE RTL8111C 1x Intel I210-AT WOL/RPL/PXE |
2x Rj45 1 x Intel® I210AT 1 x Intel® I219LM | |||
USB | 5x USB 2.0 1x USB 3.0 |
4x USB 3.1 - 2x USB 2.0 (1x Touch) | |||
COM Seriell | 6x (1x RS232/422/485) | 1x RS232 | |||
Videoausgang | 1x VGA 1x HDMI | 2x HDMI 1.4: Max. Resolution 4096x2160@24/30Hz | |||
Sicherheit | Watchdog 1~255 Schritten |
H/W Reset, 1sec. ~ 65535sec. | |||
Stromversorgung | 12VDC / 50W externes Netzteil optional 10VDC ~ 32VDC |
Integrierter Netzteil 110 ~ 260VAC 50/60Hz optional 10 ~ 32VDC Eingang |
|||
Temperaturbereich | 0° ~ 45° - Luftfeuchtigkeit bei 40°C relativ 90% nicht kondensierend optional erweitert |
0° ~ 45° - Luftfeuchtigkeit bei 40°C relativ 90% nicht kondensierend optional erweitert |
|||
Schutzklasse | komplett IP65 | komplett IP65 | |||
Schutzglas oder Touchscreen | PCAP Multitouch | PCAP Multitouch | |||
Mögliches Zubehör bei allen Geräten | 8Bit GPDIO
|
8Bit GPDIO optional PCIe x4 |
|||
Besonderheit | geschlossenes Gehäuse | geschlossenes Gehäuse mit spezieller Rückwand für Hochformat |
